Traditional Flat Bar

Traditional Flat Size 85x7mm: Available Lengths: 800mm, 900mm, 1.100mm, 1.200mm Traditional Flat Size 75x10mm: Available Lengths: 800mm, 900mm, 1.100mm, 1.200mm, 1.300mm, 1.400mm, 1.500mm, 1.600mm, 1.700mm & 1.800mm

Galintel® Traditional Flat Bar is a hot rolled lintel used to support brickwork over clear openings including windows & doors.

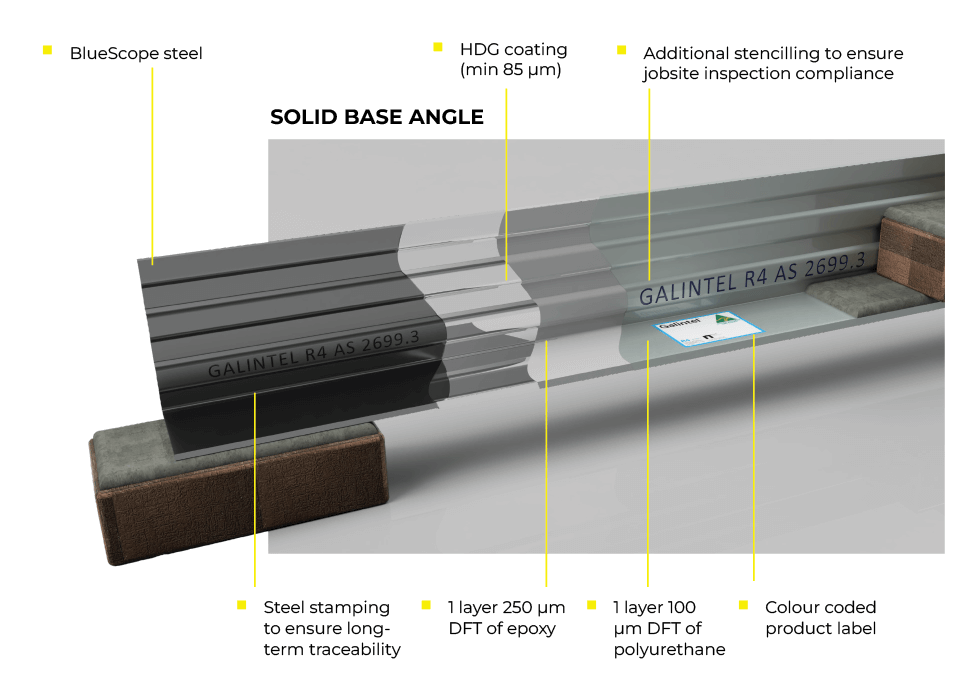

Solid Base

Solid Base Size 100x100x6mm: Available Lengths: 900mm, 1.200mm, 1.500mm 1.800mm, 2.100mm, 2.400mm & 2.700mm. Solid Base Size 150x100x6mm: Available Lengths: 1.800mm, 2.100mm, 2.400mm, 2.700mm, 3.000mm, 3.300mm, 3.600mm & 4.000mm

Galintel® Solid Base The unique profile provides a recess for mortar bedding on the vertical leg. The bonding of mortar, brickwork and lintel forms a composite beam of superior strength and load bearing capacity.

Traditional Angle Bar

•Traditional Angle Size 100x75x10mm: Available Lengths: 1.200mm, 1.500mm, 1.800mm, 2.100mm, 2.400mm, 2.700mm & 3.000mm •Traditional Angle Size: 150x100x10mm: Available Lengths: 1.800mm, 2.100mm, 2.400mm, 2.7000mm, 3.000mm, 3.300mm, 3.600mm, 4.000mm, 4.500mm, 5.000mm, 5.500mm & 6.000mm

Galintel® Traditional Angles are hot rolled merchant bar lintels. They are traditional steel sections used in the support of brickwork over clear openings and are not reliant on composite action.

Multi-Rib T-Bar

Multi-Rib T-Bar Size 200/7x200/7mm: Available Lengths: 900mm, 1.200mm, 1.500mm, 1.800mm, 2.100mm, 2.400mm, 2.700mm, 3.000mm & 3.300mm ( not stocked next day) Multi-Rib T-Bar Size: 200/9x200/9mm Available Lengths: 3.600mm, 3.900mm, 4.200mm, 4.500mm, 4.800mm, 5.100mm, 5.400mm, 5.700mm, 6.000mm & 6.300mm (not stocket next day)

Galintel® Multi-Rib T-Bar profile forms a superior bond with the mortar. This bond between mortar, brickwork and lintel creates a composite beam of superior strength and structural integrity. Position on brick piers with minimum end bearing of 150mm. Prop before bricklaying, no further than 1.2 metres apart with props remain in place until mortar has fully cured. Apply mortar (minimum 1:4) to all brick faces in contact with the T-Bar. The same number of courses must be laid internally and externally to prevent twisting of the T-Bar.

Traditional T-Bar

Traditional T-bar Size 200/6x200/6mm: Lengths: 1.800 - 2.400mm Traditional T-bar Size 200/8x200/6mm: Lengths: 2.400mm - 3.900mm Traditional T-bar Size 200/10 x 200/6mm: not stocked next day Lengths: 4.200mm - 6.300mm Traditional T-bar Size 200/10 x 200/10m: Lengths: 3.600mm - 6.300mm Traditional T-bar Size 250/10 x 200/10mm: (Not Stocked next day) Lengths: 5.200mm - 6.300mm Traditional T-bar Size 250/12 x 200/10mm: (Not Stocked next day) Lengths: 5.200mm - 6.300mm

Galintel® Traditional T-Bar. Place in position on brick piers, with minimum end bearing of 150mm. Prop before bricklaying. Props must be no further than 1.2 metres apart and must remain in place until mortar has fully cured. Apply mortar (minimum 1:4) the same number of courses must be laid internally and externally to prevent twisting of the T-Bar.

Cavi T-Bar

• Cavi T-Bar Size 180/8x250/8: Available Lengths: 2.700mm, 3.000mm, 3.300mm, 3.600mm, 3.9600mm, 4.200mm, 4.500m & 4.800mm Cavi T-Bar Size 240/9x250/8: Available Lengths: 2.700mm, 3.000mm, 3.300mm, 3.600mm, 3.900mm, 4.200mm, 4.500mm, 4.8000mm, 5.100mm, 5.400mm, 5.700mm, 6.000mm & 6.300mm if not in stock next day

Galintel® Cavi-T-Bar™ is the ideal solution for cavity walls, either double brick, or brick veneer with timber trusses. A special top flange incorporated into the upright section, of the Galintel® Cavi-T-Bar™ provides an off-the-shelf solution for cavity walls, hot-dip galvanised, fully engineered and University tested.

J-Bar

•J-Bar Size 260/90x200/10: Available Lengths: 4.200mm, 4.500mm, 4.800mm, 5.100mm, 5.400mm, 5.700mm, 6.000mm & 6.300mm •J-Bar Size 310/90x200/10: Available Lengths: 4.200mm, 4.500mm, 4.800mm, 5.100mm, 5.400mm, 5.700mm, 6.000mm & 6.300mm if not in stock next day

Galintel® J-Bar Shelf Beam is the ideal solution for cavity walls, either double brick, or brick veneer with timber trusses. The J-Bar was developed in response to demand from builders for an economical substitute for built-up steel sections such as parallel flange Channel and plate. Head & Bottom Flange Pre-drilled makes for easy timber fixing & column connection.

Retaining Wall Post 100mm Series to suit 75mm Sleeper

Retaining Wall Post 100mm (Not stocked 3 days)

•H- Section length: 900mm, 1.200mm, 1.500mm, 1.800mm, 2.100mm, 2.400mm, 2.700mm, 3.000mm, 3.300mm & 3.600mm •C-section length: 900mm, 1.200mm, 1.500mm, 1.800mm, 2.100mm, 2.400mm, 2.700mm, 3.000mm, 3.300mm & 3.600mm •90o Corner length: .900mm 1.200mm1.500mm 1.800mm 2.100mm 2.400mm 2.7.00mm 3.000mm3 •45o Corner length: 900mm, 1.200mm, 1.500mm, 1.800mm, 2.100mm, 2.400mm, 2.700mm & 3.000mm3

Galintel® Retaining Wall Posts are heavy duty steel available in a Fully Hot Dip Galvanized finish for corrosion protection. All posts are pre-drilled to accommodate the unique designed Fence Brackets. Convenient range of lengths are available in two sizes 100mm Series to suit 75mm Sleepers & 150mm Series to suit 100mm Sleepers.

Retaining Wall Post 150mm Series to suit 100mm Sleeper

Retaining Wall Post 150mm (Not stocked 3 days)

•H-Section length: 900mm, 1.200mm, 1.500mm, 1.800mm, 2.100mm, 2.400mm, 2.700mm, 3.000mm, 3.300mm, 3.600mm, 3.800mm, 4.000mm, 4.200mm, 4.400mm, 4.600mm & 4.800mm •C-Section length: 900mm 1.200mm, 1.500mm, 1.800mm, 2.100mm, 2.400mm, 2.700mm, 3.000mm, 3.300mm, 3.600mm, 3.800mm, 4.000mm, 4.2000mm, 4.400mm, 4.600mm & 4.800mm
